Network Topology

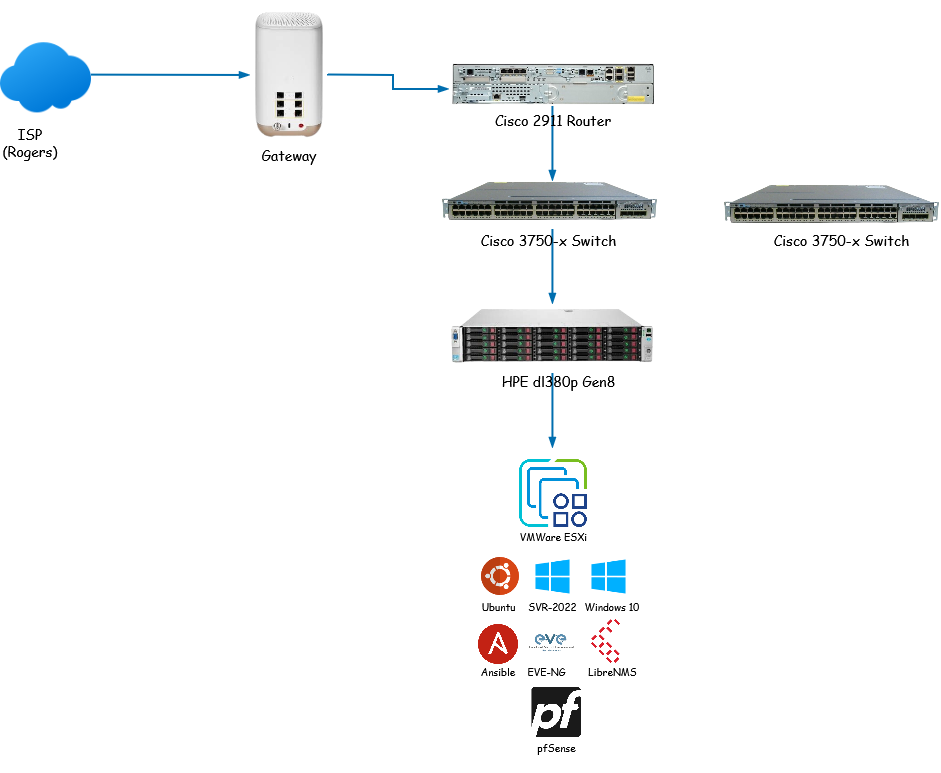

Below is the current network topology of my homelab environment, featuring enterprise-grade hardware from Cisco and HPE.
Currently Implemented
- Cisco Routing/Switching
- ESXi Hypervisor (224GB RAM, 5TB Storage)
- Windows Server 2022
- Ubuntu
In Development/Testing
- Automated configuration with Ansible
- pfSense Firewall integration
- LibreNMS monitoring
